Internal Vibrators
Reliability is guaranteed by using high quality materials and components.
BRECON internal vibrators are well suited for rough applications and a long service life. Reliability is guaranteed by using high quality materials and components.
Thermosensors protect the motor against overload and high temperature. Thanks to the optimal power output of the motor, the rotation speed always stays constant, even under extreme load.
BRECON internal vibrators are designed for easy service. They can be repaired easily and fast without using special tools. The hoses are highly resistant to wear and bruising.
Overview

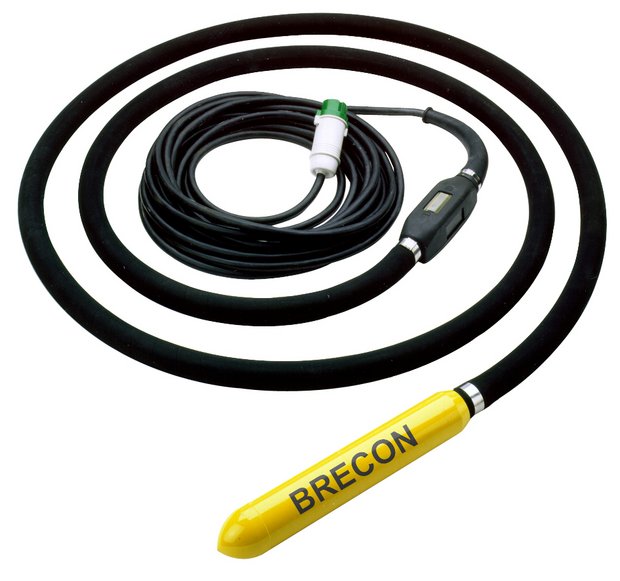

BRECON internal vibrators for connection to separate frequency inverters
BRECON internal vibrators for connection to frequency inverters are available in 31, 38, 50, 58, 65 and 80 mm diameter for 42 V/200 Hz or 250 V/200 Hz three-phase input.
Ø 31 to 80 mm · 12,000 rpm · 42 V or 250 V, 200 Hz
BRECON internal vibrators with integrated frequency inverter
BRECON internal vibrators with integrated frequency inverter are available in 31, 38, 50, 58 and 65 mm diameter for 230 V or 110 V single-phase input.
Ø 31 to 65 mm · 12,000 rpm · 230 V or 110 V · residual current protection and full thermal protection
BRECON pneumatic internal vibrators
BRECON pneumatic internal vibrators are available in 28, 35, 45, 55, 65, 75, 85 and 105 mm diameter.
Ø 28 to 105 mm · air pressure 6 to 7 bar
Technical consultation and custom solutions
- Internal vibrators for frequency inverters, for 230 V or 110 V and pneumatic
- Matching portable frequency converters and frequency inverters
- Spare vibrator heads and accessories
- Customized products for your application
Applications
FAQ – Internal vibrators
What is the difference between internal vibrators with and without integrated frequency inverter?
Internal vibrators with integrated frequency inverter can be operated directly on the 230 V or 110 V mains, without a separate converter. Internal vibrators for connection to an external frequency inverter require an additional control unit, but offer more flexibility in speed control.
Which head diameter is right for my project?
This depends on the reinforcement density and the radius of action you need. BRECON offers internal vibrators from 28 to 160 mm diameter, from compact units for dense reinforcement to powerful vibrator heads for large-scale concreting.
How does BRECON prevent the motor from overheating?
BRECON internal vibrators are equipped with thermosensors that protect the motor against overload and overheating. In addition, a deliberately oversized motor ensures a constant speed even under increased load.
Are there internal vibrators that do not need a power supply?
Yes, BRECON offers pneumatic internal vibrators that are operated with a separate air supply or compressor, ideal for sites without a mains connection or with special safety requirements.
For customized products and more information, please do not hesitate to contact us. We will be glad to offer you our technical consultation.
